HDMI IPTV Encoder Support RTMP and Onvif


![]() |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
---|---|
![]() |
On-time Delivery Guarantees: On-time Delivery 60 days |
H.264 VGA IPTV Encoder VGA VIDEO ENCODER Support RTMP and Onvif for rtmp/udp/rtsp/http protocols
U8 VISION LIMITED H.264 VGA IPTV Encoder VGA VIDEO ENCODER Support RTMP and Onvif( iptv streaming encoder ) is our newest professional HD audio & video encoding device with powerful functionality. It supports H.264 encoding, dual-Streaming data. It is equipped with 1 VGA channels input supporting MPEG-4 AVC/H.264 High Profile code format & main Profile code format. Its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end. Satellite and terrestrial digital TV etc., also it supports VLC decode.
· H.264 VGA IPTV Encoder VGA VIDEO ENCODER Support RTMP and Onvif
· Audio coding support MPEG1 Audio Layer2
· CBR/VBR/ABR code rate controlling , 16kbit/s-40Mbit/s
· Support Network interface full-duplex mode 1000M
· Support up to 720P, 1080P HD video input
· Support image parameter settings
· Support HDCP protocol and HD blue-ray
· Support HTTP, UTP, RTSP, RTMP, ONVIF protocol
· The WEB operating interface, configuration interface in Chinese and English are optional.
· Authority management for WEB operating interface.
· Support the double stream output
· The main stream and the second stream can be transferred by different networking protocol
· Support the setting for stream resolution.
· Supports MP3 and AAC audio format selection
· Support switching mono and stereo for audio output stream

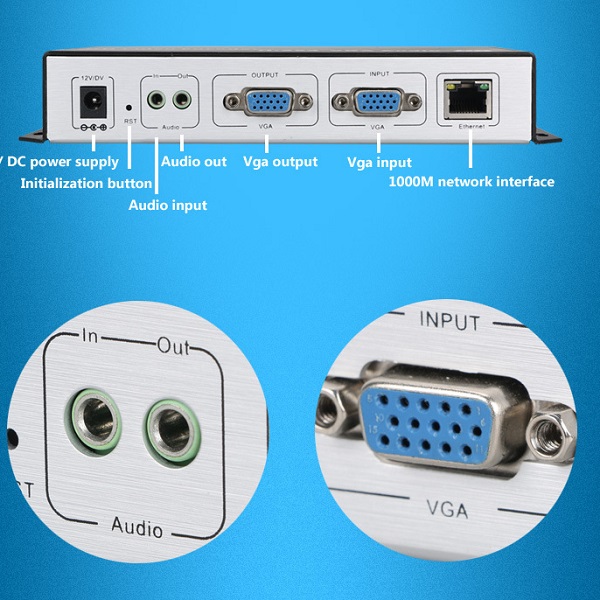

Video |
|
Input |
1x VGA( 1.3a) HDCP |
Resolution |
1920x1080P/1080i/720P @50/60Hz |
Encoding |
H.264/AVC High Profile Level 4.0 |
Data Rate |
0.8Mbps~12Mbps |
Rate Control |
CBR/VBR |
GOP Structure |
IBBP |
Advanced Pretreatment |
De-interlacing, Noise Reduction, Sharpening |
Audio |
|
Encoding |
AAC |
Sampling rate |
Auto |
Bit-rate |
32K/48K/64K/96K/128K/160K/192K |
Sampling precision |
24 bit |
Data Rate |
64Kb/s~384Kb/s |
System |
|
Ethernet |
1000 Base-T Ethernet interface |
Protocol |
HTTP UDP unicast / multicast;RTSP;RTMP |
Control Interface |
WEB |
Others |
|
Dimension (W× L× H) |
16.8×10.2×2.7cm |
Weight |
0.36kg |
Temperature |
0-45(work),-20-80(storage) |
Power |
12V/DC |
Consumption |
6W |
![]() 1. IPTV 2. Digital Signal 3. Video Conference 4. Replace HD Video Capture Card 5. Hotel TV system 6. Live Broadcast 7. Teaching/Campus Broadcast 8. Recording System 9. NVR(Net Video Recorder) H.264 VGA IPTV Encoder VGA VIDEO ENCODER VGA Encoder Support RTMP and Onvif for rtmp/udp/rtsp/http protocols |
